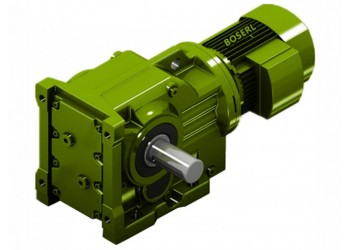

螺旋傘齒輪減速機K128-Y45KW K128-Y4KW

K128減速機電機功率：K128Y0.18KW,K128Y0.25KW,K128Y0.37KW,K128Y0.55KW,K128Y0.75KW,K128Y1.1KW,K128Y1.5KW,K128Y2.2KW,K128Y3KW,K128Y4KW,K128Y5.5KW,K128Y7.5KW,K128Y11KW,K128Y15KW,K128Y18.5KW,K128Y22KW,K128Y30KW,K128Y37KW,K128Y45KW,K128Y55KW,K128Y75KW,K128Y90KW（可配http://www.bosiii.com/product/k127jiansuji-cn.html變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機）。

K128減速機減速比：146.07比,136.14比,122.48比,110.18比,89.89比,81.98比,70.95比,62.60比,54.07比,47.82比,40.19比,36.25比,31.37比,27.68比,23.91比,21.15比,17.77比,14.35比,12.79比,10.74比,8.68比（兩個減速機組合，可獲得更大的減速比）

K128減速機輸出轉數：9.6轉,10轉,11轉,13轉,16轉,17轉,20轉,22轉,26轉,29轉,35轉,39轉,45轉,51轉,59轉,66轉,79轉,98轉,109轉,130轉,161轉。（以上http://www.bosiii.com/product/list-zhijiaojiansuji-cn.html轉數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）。
K128減速機輸出扭矩：13000N.m,12100N.m,8530N.m,8000N.m,7230N.m。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，型號加大,或者兩個組合使用）

K128減速機安裝尺寸：輸出http://www.bosiii.com/product/list-kxiliejiansuji-cn.html軸+鍵Φ116（可定做），高592*寬618（帶輸出軸）*長615

K127減速機電機型號：K128-Y4KW,K128-Y5.5KW,K128-Y7.5KW,K128-Y11KW,K128-Y15KW,K128-Y18.5KW,K128-Y22KW,K128-Y30KW,K128-Y37KW,K128-Y45KW,K128-Y55KW,K128-Y75KW,K128DRN280S4,K128DRN225S4,K128DRN200L4,K128DRN180S4,K128DRN160S4,K128DRN132S4,K128DRN112S4,K128DV280S4,K128DV225S4,K128DV200L4,K128DV180S4,K128DV160S4,K128DV132S4,K128DV112S4,K128DM280S4,K128DM225S4,K128DM200L4,K128DM180S4,K128DM160S4,K128DM132S4,K128DM112S4,K128DT280S4,K128DT225S4,K128DT200L4,K128DT180S4,K128DT160S4,K128DT132S4,K128DT112S4,K128DRS280S4,K128DRS225S4,K128DRS200L4,K128DRS180S4,K128DRS160S4,K128DRS132S4,K128DRS112S4,K128DR280S4,K128DR225S4,K128DR200L4,K128DR180S4,K128DR160S4,K128DR132S4,K128DR112S4,K128DVE280S4,K128DVE225S4,K128DVE200L4,K128DVE180S4,K128DVE160S4,K128DVE132S4,K128DVE112S4,K128DRN280M4,K128DRN225M4,K128DRN180L4,K128DRN180M4,K128DRN160M4,K128DRN132M4,K128DRN112M4,K128DV280M4,K128DV225M4,K128DV180L4,K128DV180M4,K128DV160M4,K128DV132M4,K128DV112M4,K128DT280M4,K128DT225M4,K128DT180L4,K128DT180M4,K128DT160M4,K128DT132M4,K128DT112M4,K128DRS280M4,K128DRS225M4,K128DRS180L4,K128DRS180M4,K128DRS160M4,K128DRS132M4,K128DRS112M4,K128DR280M4,K128DR225M4,K128DR180L4,K128DR180M4,K128DR160M4,K128DR132M4,K128DR112M4,K128DVE280M4,K128DVE225M4,K128DVE180L4,K128DVE180M4,K128DVE160M4,K128DVE132M4,K128DVE112M4,K128DM280M4,K128DM225M4,K128DM180L4,K128DM180M4,K128DM160M4,K128DM132M4,K128DM112M4,K128Y280M4,K128Y225M4,K128Y200M4,K128Y180M4,K128Y160M4,K128Y132M4,K128Y112M4。

     1:309減速機電機廠F97R57DM100L4
     http://m.r-pi.cn/goods/show-51706.html
     1:304減速機電機廠F97R57DRS80K4
     http://m.r-pi.cn/goods/show-51707.html
     0.12KW電機減速機廠S97R57DRE63S4
     http://m.r-pi.cn/goods/show-51709.html
     0.18千瓦電動機配減速機R97R57DR63S4
     http://m.r-pi.cn/goods/show-51710.html
螺旋傘齒輪減速機K128-Y45KW K128-Y4KW由廣東伯仕傳動科技有限公司提供，該企業負責螺旋傘齒輪減速機K128-Y45KW K128-Y4KW的真實性、準確性和合法性。本站對此不承擔任何保證責任。
