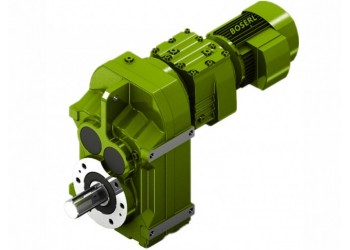

F97R57減速機電機功率：F97R57Y0.12KW,F97R57Y0.18KW,F97R57Y0.25KW,F97R57Y0.37KW,F97R57Y0.55KW,F97R57Y0.75KW,F97R57Y1.1KW,F97R57Y1.5KW,F97R57Y2.2KW（可配http://www.bosiii.com/product/f97r57jiansuji-cn.html變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機）。

F97R57減速機減速比：245比,285比,363比,406比,467比,529比,605比,690比,784比,898比,1022比,1171比,1327比,1527比,1722比,1970比,2245比,2553比,2907比,3352比,3906比,4333比,4961比,5615比,6469比。

F97R57減速機輸出轉數：0.21轉,0.25轉,0.28轉,0.3轉,0.32轉,0.34轉,0.35轉,0.39轉,0.41轉,0.45轉,0.47轉,0.51轉,0.52轉,0.54轉,0.58轉,0.59轉,0.66轉,0.67轉,0.7轉,0.75轉,0.77轉,0.8轉,0.85轉,0.86轉,0.9轉,0.98轉,0.99轉,1轉,1.1轉,1.2轉,1.3轉,1.4轉,1.5轉,1.6轉,1.8轉,2轉,2.1轉,2.3轉,2.4轉,2.6轉,2.7轉,3轉,3.1轉,3.4轉,3.5轉,3.8轉,3.9轉,4轉,5轉,5.8轉（以上http://www.bosiii.com/product/list-pingxingzhoujiansuji-cn.html轉數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）
F97R57減速機輸出扭矩：1220N.m,1330N.m,1360N.m,1420N.m,1580N.m,1620N.m,1670N.m,1730N.m,1750N.m,1790N.m,1810N.m,1910N.m,1950N.m,2000N.m,2070N.m,2090N.m,2100N.m,2210N.m,2320N.m,2340N.m,2370N.m,2380N.m,2450N.m,2500N.m,2540N.m,2690N.m,2700N.m,2710N.m,2730N.m,2740N.m,2820N.m,2890N.m,2900N.m,2990N.m,3050N.m,3110N.m,3160N.m,3200N.m,3210N.m,3320N.m,3340N.m,3350N.m,3540N.m,3570N.m,3580N.m,3670N.m,3730N.m,3800N.m,3820N.m,3900N.m,3990N.m,4050N.m,4080N.m,4110N.m,4140N.m,4180N.m,4320N.m,4420N.m,4540N.m,4550N.m,4670N.m,4710N.m,4800N.m,4880N.m（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，型號加大,或者兩個組合使用）

F97R57減速機安裝尺寸：輸出http://www.bosiii.com/product/list-fxiliejiansuji-cn.html軸Φ70+鍵4.5（可定做），高622*寬400*長643（帶輸出軸）

F97R57減速機電機型號：F97R57DM100L4,F97R57DM100LC4,F97R57DM100LS4,F97R57DM100M4,F97R57DM63L4,F97R57DM63M4,F97R57DM63MS4,F97R57DM63S4,F97R57DM71D4,F97R57DM71M4,F97R57DM71MS4,F97R57DM71S4,F97R57DM80D4,F97R57DM80K4,F97R57DM80M4,F97R57DM80MK4,F97R57DM80S4,F97R57DM90L4,F97R57DM90M4,F97R57DM90S4,F97R57DR100L4,F97R57DR100LC4,F97R57DR100LS4,F97R57DR100M4,F97R57DR63L4,F97R57DR63M4,F97R57DR63MS4,F97R57DR63S4,F97R57DR71D4,F97R57DR71M4,F97R57DR71MS4,F97R57DR71S4,F97R57DR80D4,F97R57DR80K4,F97R57DR80M4,F97R57DR80MK4,F97R57DR80S4,F97R57DR90L4,F97R57DR90M4,F97R57DR90S4,F97R57DRE100L4,F97R57DRE100LC4,F97R57DRE100LS4,F97R57DRE100M4,F97R57DRE63L4,F97R57DRE63M4,F97R57DRE63MS4,F97R57DRE63S4,F97R57DRE71D4,F97R57DRE71M4,F97R57DRE71MS4,F97R57DRE71S4,F97R57DRE80D4,F97R57DRE80K4,F97R57DRE80M4,F97R57DRE80MK4,F97R57DRE80S4,F97R57DRE90L4,F97R57DRE90M4,F97R57DRE90S4,F97R57DRN100L4,F97R57DRN100LC4,F97R57DRN100LS4,F97R57DRN100M4,F97R57DRN63L4,F97R57DRN63M4,F97R57DRN63MS4,F97R57DRN63S4,F97R57DRN71D4,F97R57DRN71M4,F97R57DRN71MS4,F97R57DRN71S4,F97R57DRN80D4,F97R57DRN80K4,F97R57DRN80M4,F97R57DRN80MK4,F97R57DRN80S4,F97R57DRN90L4,F97R57DRN90M4,F97R57DRN90S4,F97R57DRS100L4,F97R57DRS100LC4,F97R57DRS100LS4,F97R57DRS100M4,F97R57DRS63L4,F97R57DRS63M4,F97R57DRS63MS4,F97R57DRS63S4,F97R57DRS71D4,F97R57DRS71M4,F97R57DRS71MS4,F97R57DRS71S4,F97R57DRS80D4,F97R57DRS80K4,F97R57DRS80M4,F97R57DRS80MK4,F97R57DRS80S4,F97R57DRS90L4,F97R57DRS90M4,F97R57DRS90S4,F97R57DT100L4,F97R57DT100LC4,F97R57DT100LS4,F97R57DT100M4,F97R57DT63L4,F97R57DT63M4,F97R57DT63MS4,F97R57DT63S4,F97R57DT71D4,F97R57DT71M4,F97R57DT71MS4,F97R57DT71S4,F97R57DT80D4,F97R57DT80K4,F97R57DT80M4,F97R57DT80MK4,F97R57DT80S4,F97R57DT90L4,F97R57DT90M4,F97R57DT90S4,F97R57DV100L4,F97R57DV100LC4,F97R57DV100LS4,F97R57DV100M4,F97R57DV63L4,F97R57DV63M4,F97R57DV63MS4,F97R57DV63S4,F97R57DV71D4,F97R57DV71M4,F97R57DV71MS4,F97R57DV71S4,F97R57DV80D4,F97R57DV80K4,F97R57DV80M4,F97R57DV80MK4,F97R57DV80S4,F97R57DV90L4,F97R57DV90M4,F97R57DV90S4,F97R57DVE100L4,F97R57DVE100LC4,F97R57DVE100LS4,F97R57DVE100M4,F97R57DVE63L4,F97R57DVE63M4,F97R57DVE63MS4,F97R57DVE63S4,F97R57DVE71D4,F97R57DVE71M4,F97R57DVE71MS4,F97R57DVE71S4,F97R57DVE80D4,F97R57DVE80K4,F97R57DVE80M4,F97R57DVE80MK4,F97R57DVE80S4,F97R57DVE90L4,F97R57DVE90M4,F97R57DVE90S4,F97R57Y100M4,F97R57Y63M4,F97R57Y71M4,F97R57Y80M4,F97R57Y90M4,F97RF57Y100M4,F97RF57Y63M4,F97RF57Y71M4,F97RF57Y80M4,F97RF57Y90M4。
