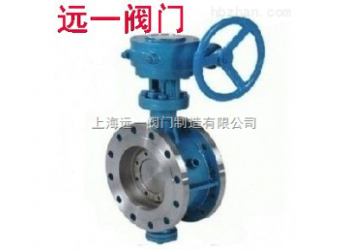

保溫蝶閥BD341H-10C/16C/25/40P/R/RL

一、法蘭式保溫蝶閥說明：
BD341H-10C/16C/25/40P/R/RL法蘭式保溫蝶閥/法蘭式硬密封/法蘭式多層次硬密封具有良好的保溫保冷特性，材質為鑄鋼、碳鋼、不銹鋼、鉻鉬鋼等,驅動方式為手動、蝸輪傳動、氣動、電動、液動。且閥門的通徑和管徑一至，介質呈直線流動，阻力小，容易凝固、高粘度的液體介質。同時又能有效降低管路中介質的熱量損失。整體式夾套設計，更能均勻地保溫、保冷。夾套、閥體外側與夾套接管焊接，允許蒸汽或冷水的zui高壓力為1MPa。主要用于石油、化工、制藥、食品等各類系統中，以輸送常溫下會凝固的高粘度介質。
二、法蘭式保溫蝶閥尺寸：

公稱通徑DN（mm）結構長度（標準值）外形尺寸（參考值）連接尺寸（標準值）參考重量D1343H

LHBDd343HBDd643HBDd943HPN0.6MPaPN1.6MPa

毫米mm英寸inch短Brief長longH1A1B1H2A2B2H3A3B3DD1Z-dDD1Z-d

502108150112350180200625245725302502551401104-141651254-1817

6521/2112170115370180200625245725302502551601304-141851454-1820

803114180120380180200645245725652502551901504-182001608-1823

1004127190138420180200675355926002502552101704-182201808-1825

1255140200164460180200715355926402502552402008-182502108-1840

1506140210175555270280800355927053003152652258-182852408-2247

20081522302007604004258502501707753003153202808-183402958-2260

2501016525024383040042592525017094530031537533512--2295

300121782702508954505601035450220107030031544039512-2244540012-22124

350141902902809504505601070450220114030031549044512-2250546016-22181

4001621631030511905355801190450220121030031554049516-2256551516-26260

4501822233035012555355801250650280133557571459555016-2261556520-26338

50020229350380130553855801290650280141557571464560020-2267062020-26360

6002426739044513405706601455850380160565681075570520-2678072520-30540

7002829243048015207505501585850380184465681086081024-2689584024-30580

80032318470530171075055017001250380204065681097592024-3010159502433845

9003633051058018107505501965125038022557858631075102024-301115105028-331050

10004041055065019609007502015125038023807858631175112028-301230116028-361500

120048470630760225010009252250125038026407858631405134032-331455138032-392000

14005653071085024351000925---2886--1630156036-361675159036-423000

160064600790103027801000925---3456--1830176040-361915182040-484700

180072670870123030201100980---3420--2045197044-392115202044-486500

200080760950135032701100980---3685--2265218048-422325223048-488700      電動法蘭球閥Q941Y/W-16P/25P/40P/R/RL
