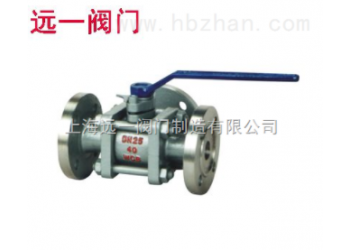

節能型焦爐球閥Q44M-40

該系列球閥特別適用于各焦化廠焦爐氨水、噴射循環系統高低壓轉換時使用。
一、閥門的連接尺寸與原三通球閥相同，更換方便。
二、特制的增強聚四氟乙烯封圈，其耐磨強度大大提高，顯著提高密封圈的使用壽命。
三、獨特的內部結構，不僅大大降低了生產成本，而且使加工與維修更加簡單化。
四、帶倒密封結構的下裝式閥桿，不僅防止了閥桿脫出，而且閥桿部位的密封更加可靠。
五、外型結構緊湊，獨特三塊式設計使閥門外觀更*。

The valve series are especially applicable for the high/low-temperature conversion course in such fields as the ammonia water in coke ovens or the injection circulating system in coke plants.
1.The connection dimension of the valve is identical to that of the above-mentioned
3-way ball valve for convenient replacement.
2.The specially-designed seal ring made from strong polytetrafluoroethylene with much greater abrasion strength could obviously enhance the service life of the ring.
3.The special interior structure applied not only reduces the production cost but also simplifies the processing and maintenance work.
4.The lower-loading Stem with backward sealing construction not only prevents
the handle form backing-out but also ensures the reliability of the scaling part of the handle.
5.With compact structure in configuration,the specially-designed 3-part feature makes the valve much more perfect.

產品型號 Product type	零件名稱 Accessory name	零件材料 Accessory material
Q44M-40DN25  Q41F-40DN25	閥體、閥蓋 body,Bonnet	WCB
	球體 Ball	1Cr18Ni9Ti
	閥桿 Stem	2Cr13
	密封圈 Sealing ring	增強聚四氟乙烯 RPTFE
	填料 Stuffing	V型聚四氟乙烯 V-shaped PTFE

主要連接尺寸

公稱壓力 PN（MPa） Nominal pressure
	試驗壓力（Mpa）
	殼體 Shell	高壓液密封閉 High-pressure liquid sealing	低壓氣密封 Low-pressure hermetic sealing
4.0	6.0	4.4	0.6
適用溫度 Applicable temperture	≤150℃
	氨水等 Liquid ammonia, etc.
